long range radios


  Long range radio control
PERFORMANCE

10 Miles ( 16 km ) line of sight w Hi-Gain antenna
2000 feet (600m) inside partially obstructed
Encoded 16 bits with 65,536 codes

Simple DIP switch programming setup
System is Solar Ready, 12VDC operation
Unlimited transmitter and receivers can be added
Compliance:
   27 MHz license free industrial band part 95
   FCC, CFR part 15.247 ISM, PC board UL796 and UL94
SPECIFICATIONS


Transmitter Input: Dry Contact
 Receiver Output  SPDT relay 1 Amp, 32 VDC,  Class 2
 Operation frequency: 27 MHz digital encoded, industrial band
 Operating Temperature: -4° to +140° F (-20° to +60° C)
 Dimensions
8.25 x 5.00 x 3.00 in. / 209.55 x 127.00 x 76.20 mm
 Operation voltage: 12VDC
 Power: Transmitter standby >0.001 mA, energized 2A (1 Sec.),

Short pulse transmission comply MIL standard

Power draw: Receiver standby 30mA, energized 120mA
 Antenna 50 ohm,

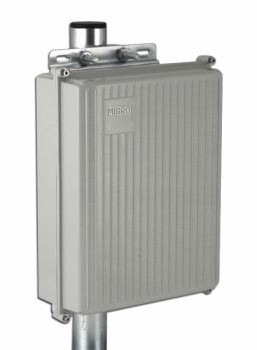

937141 Base Transmitter 1 Channel







      Information and Prices



937144  Base Transmitter 4 Channel








937041  Base Receiver 1 Channel

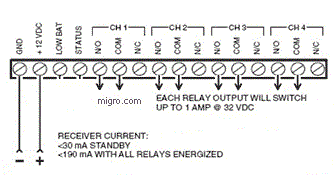

 937044  Base  Receiver 4 Channel




Quarter Wave (3 foot)     Omni Antenna

Frequency 26-28 MHz
Gain 2 dBi
Vertical Beam 30 degrees
Impedance 50 Ohms
Connector SO-239
Max Power 150 Watts
VSWR < 1.5:1 avg.
Polarization Vertical
Wind Data 150 mph

12 Feet of 50 ohm coaxial cable with connectors and mounting kit









 DISCLAIMER:    Contact a licensed professional for your project.   Warning: Radio control equipment is not to be used in life safety
